Name: Drill Gages
Brand: PEC Tools
SKU: 5051
Price: 36.61 USD
Availability: InStock

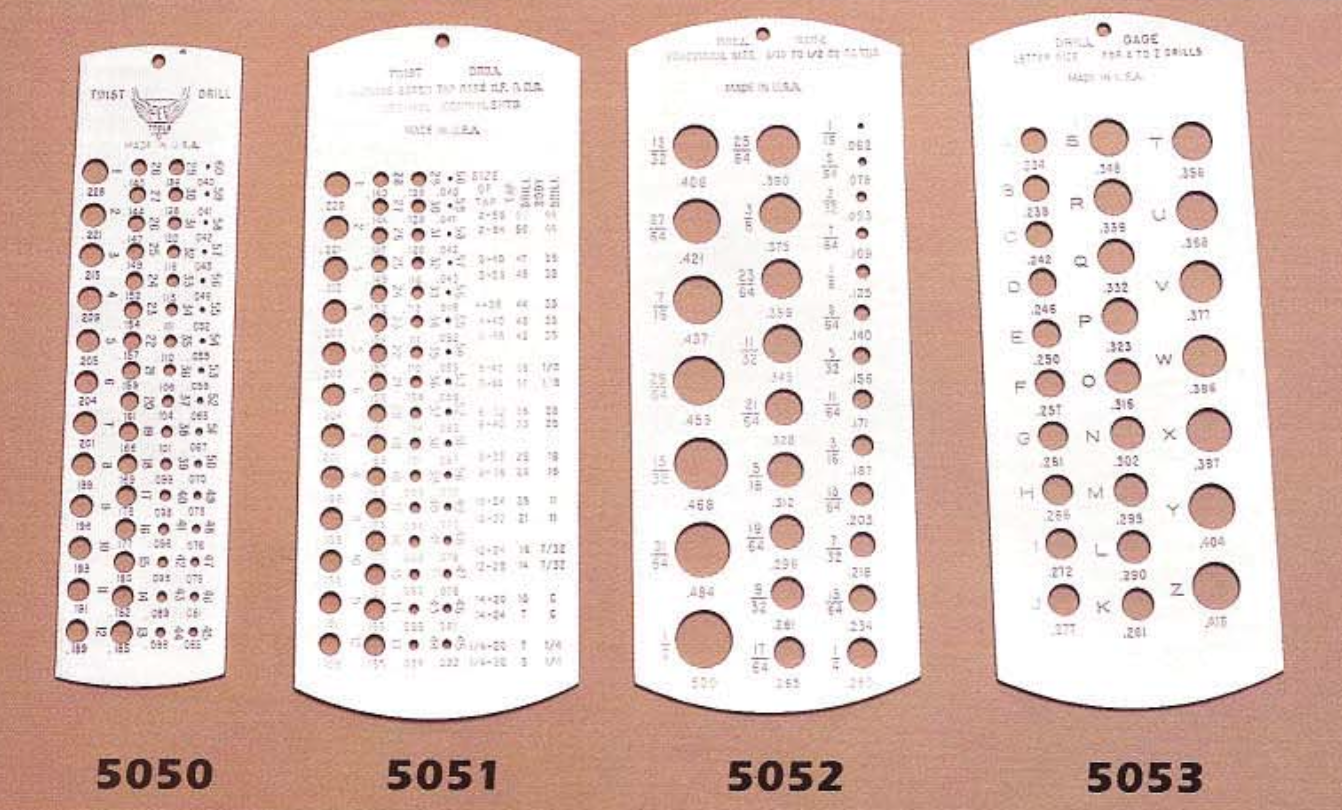

Type:

1-60 Twist Drill and Machine Screw Tap Gage

1/16* to 1/2" Fractional Size Drill Gage

A to Z Alphabet Drill Gage

61-80 Twist Drill and Drill Rod Gage

1.0 to 5.9 mm Metric Twist Drill and Drill Rod Gage

1.5 to 12.5 mm Metric Twist Drill and Drill Rod Gage

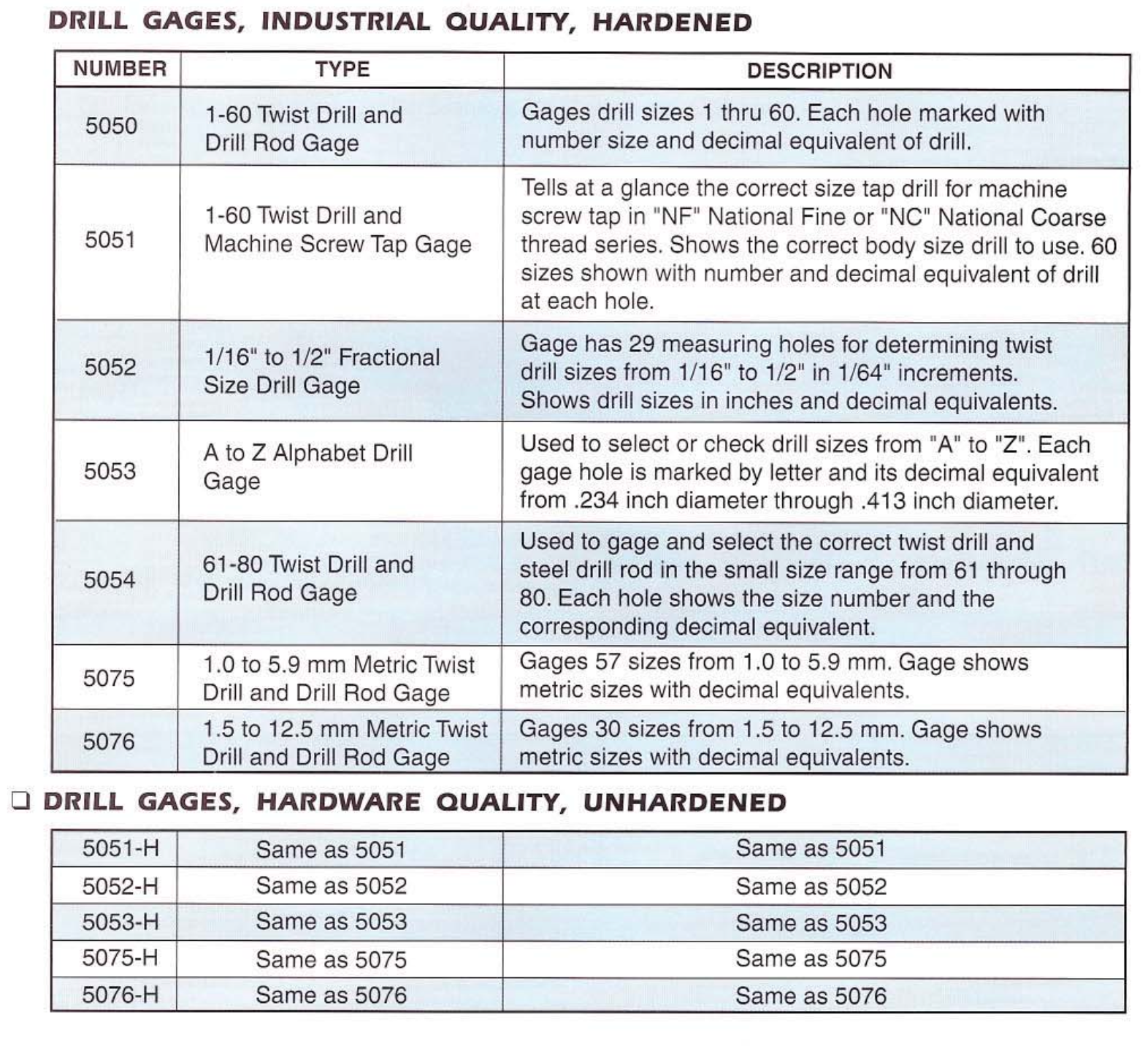

Description:

Tells at a glance the correct size tap drill for machine screw tap in "NF" National Fine or "NC" National Coarse thread series. Shows the correct body size drill to use. 60 sizes shown with number and decimal equivalent of drill at each hole.

Gage has 29 measuring holes for determining twist drill sizes from 1/16" to 1/2" in 1/64" increments. Shows drill sizes in inches and decimal equivalents.

Used to select or check drill sizes from "A" to "Z". Each gage hole is marked by letter and its decimal equivalent from .234 inch diameter through .413 inch diameter.

Used to gage and select the correct twist drill and steel drill rod in the small size range from 61 through 80. Each hole shows the size number and the corresponding decimal equivalent.

Gages 57 sizes from 1.0 to 5.9 mm. Gage shows metric sizes with decimal equivalents.

Gages 30 sizes from 1.5 to 12.5 mm. Gage shows metric sizes with decimal equivalents.
