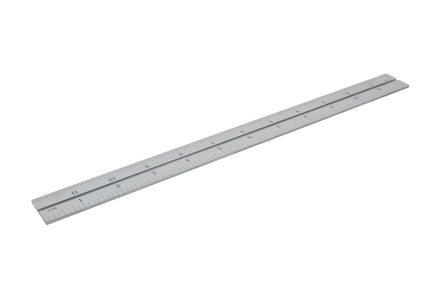

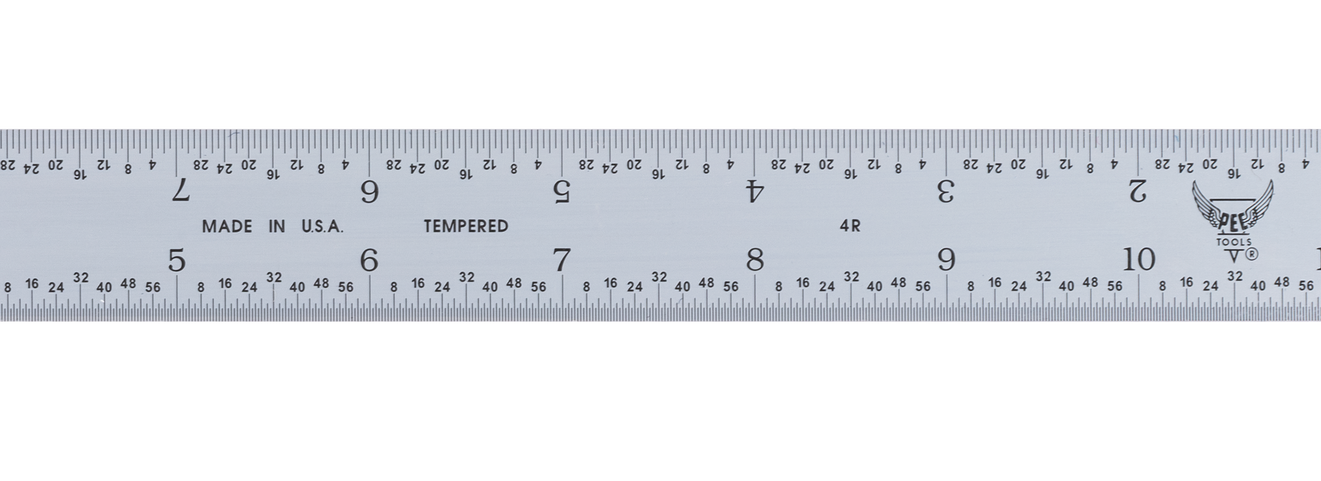

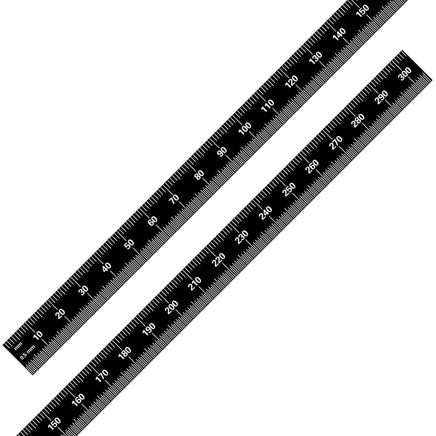

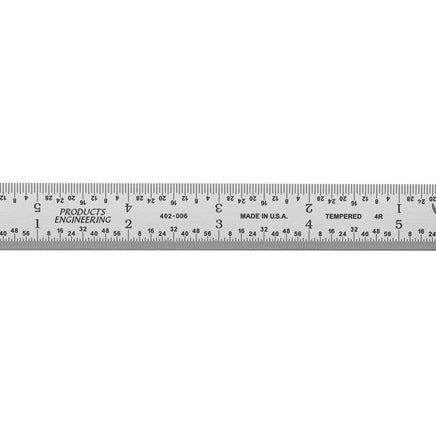

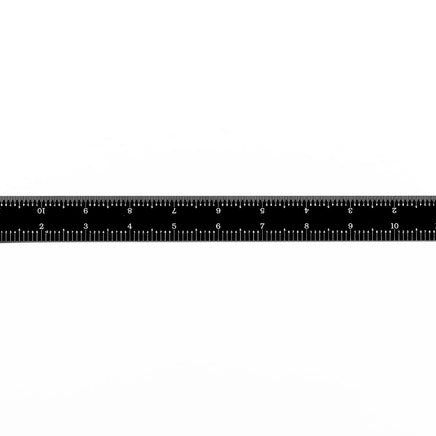

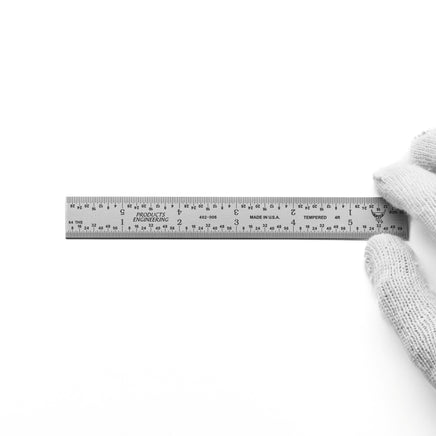

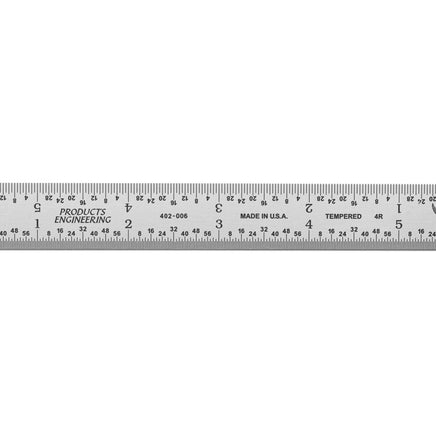

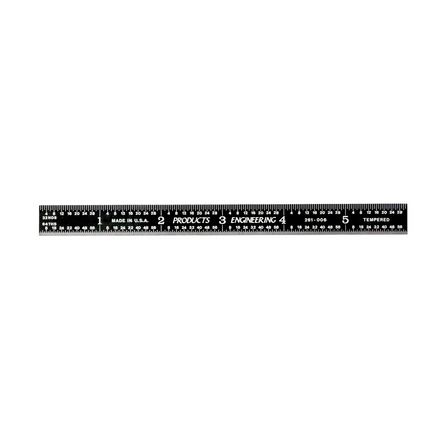

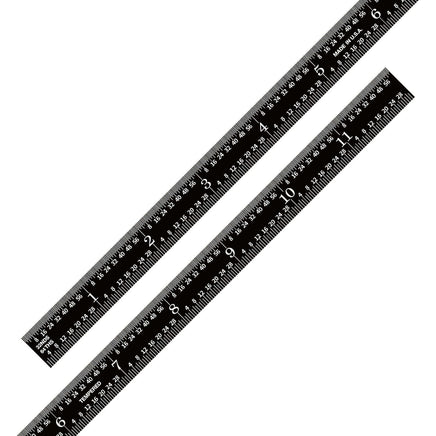

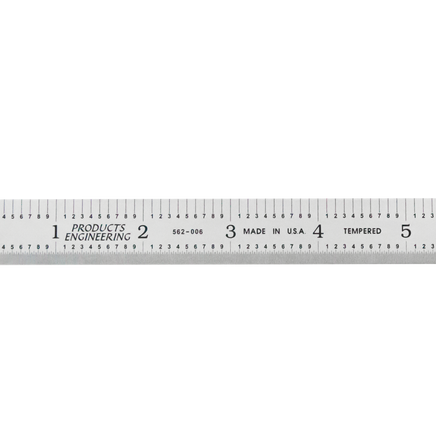

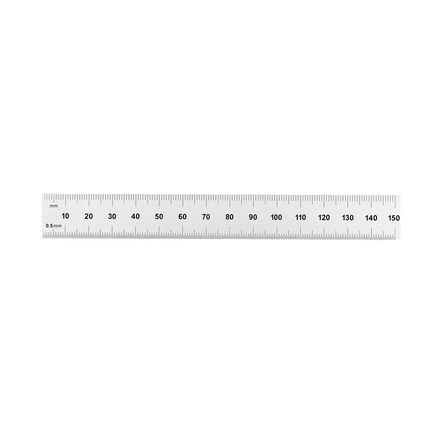

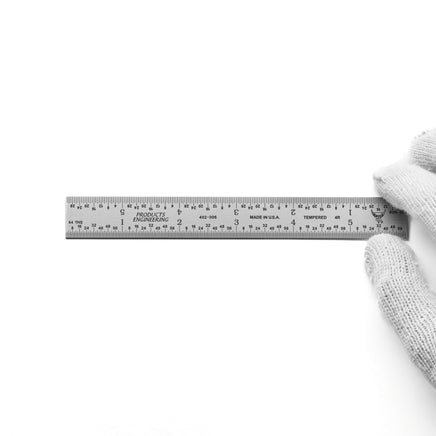

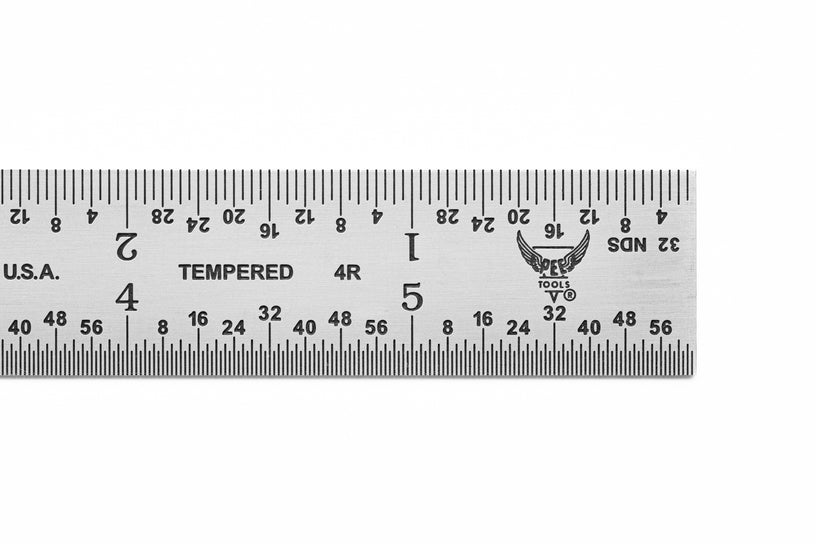

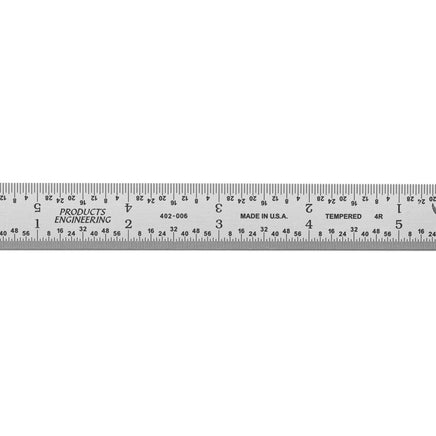

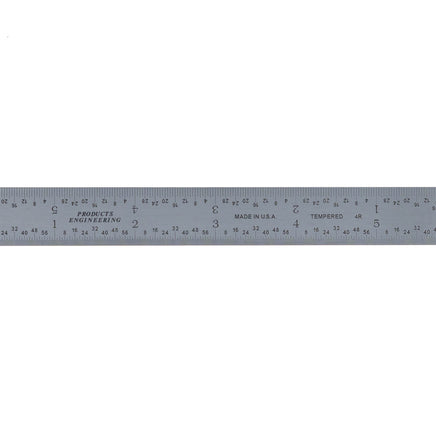

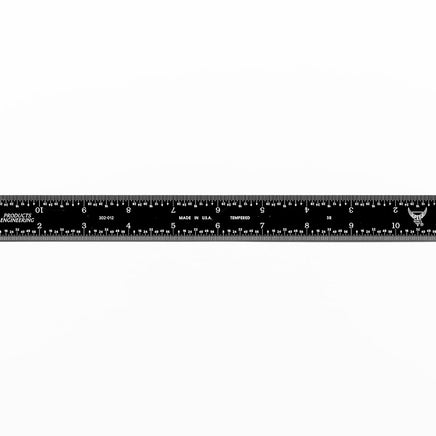

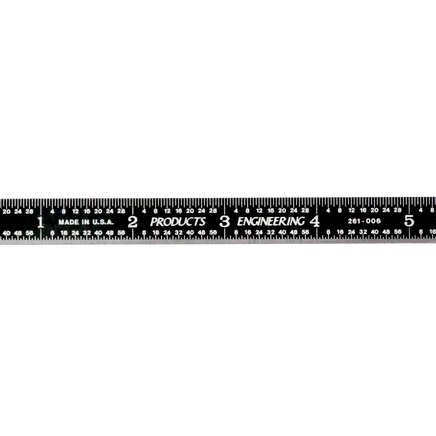

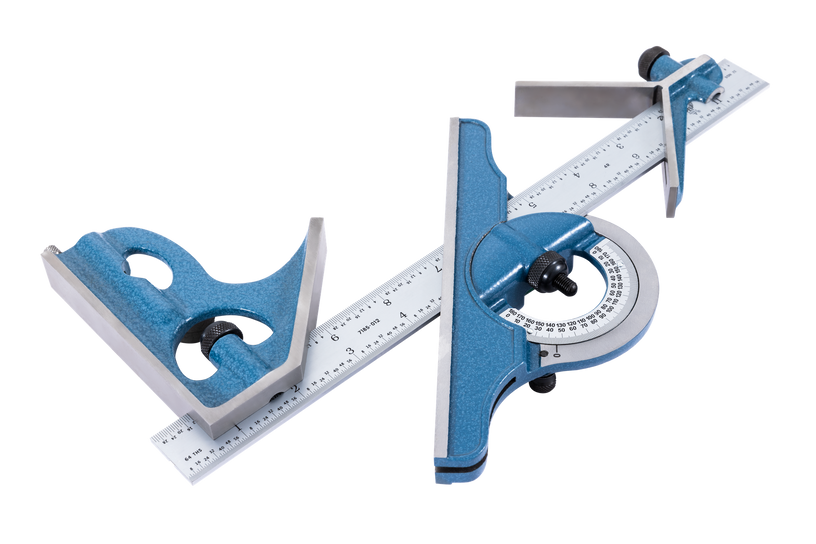

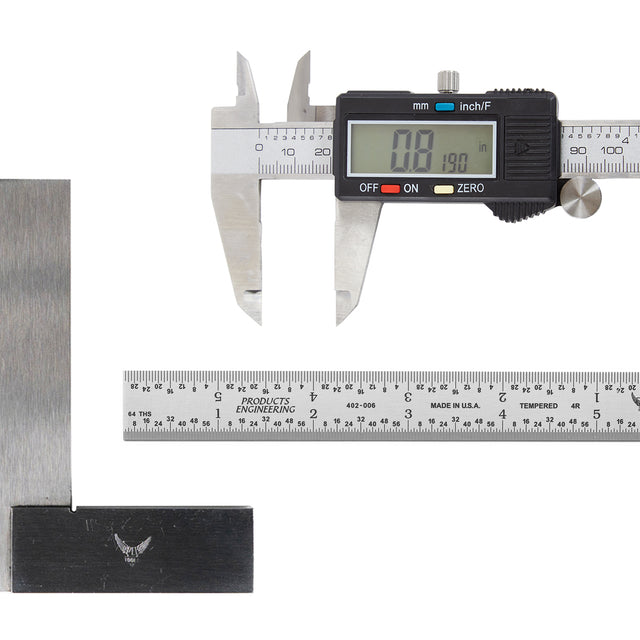

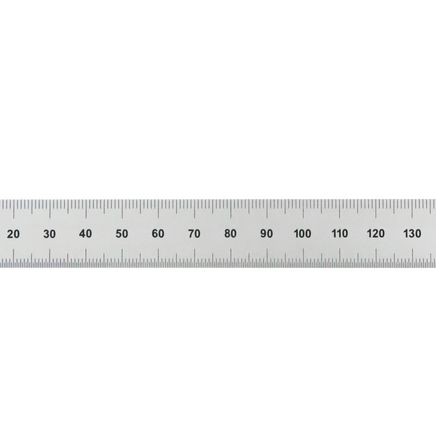

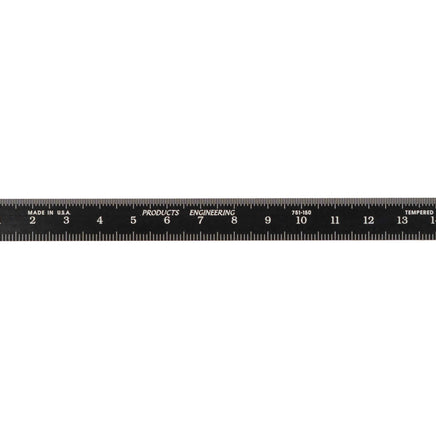

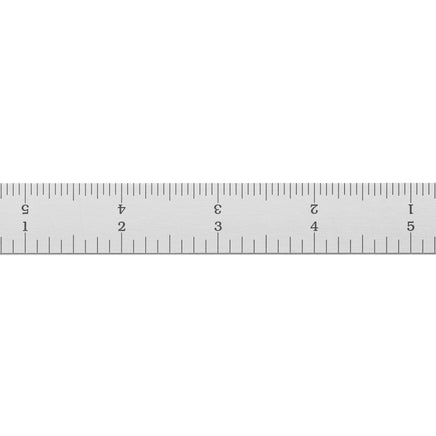

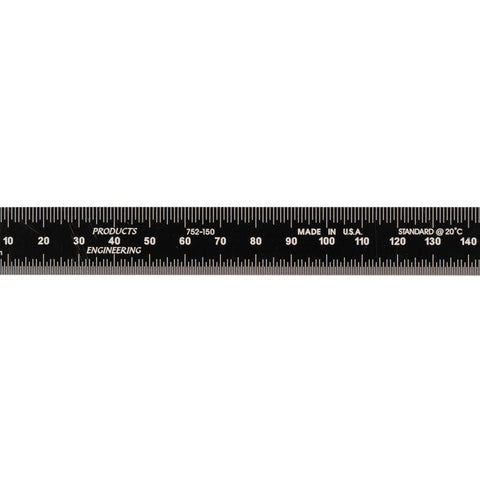

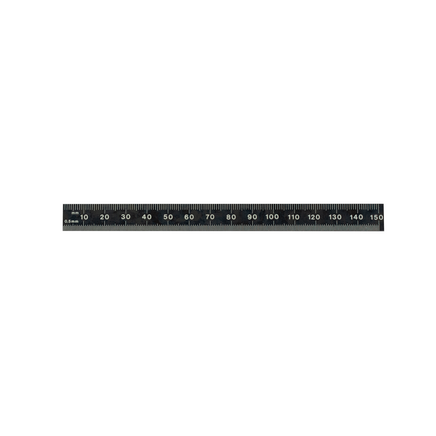

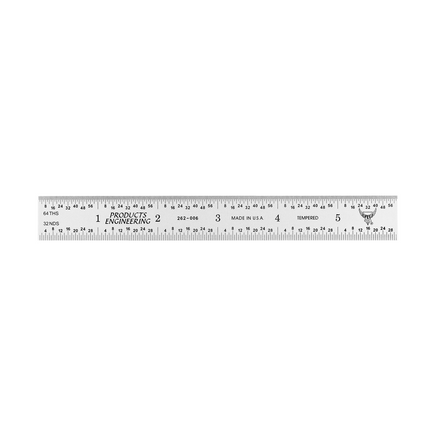

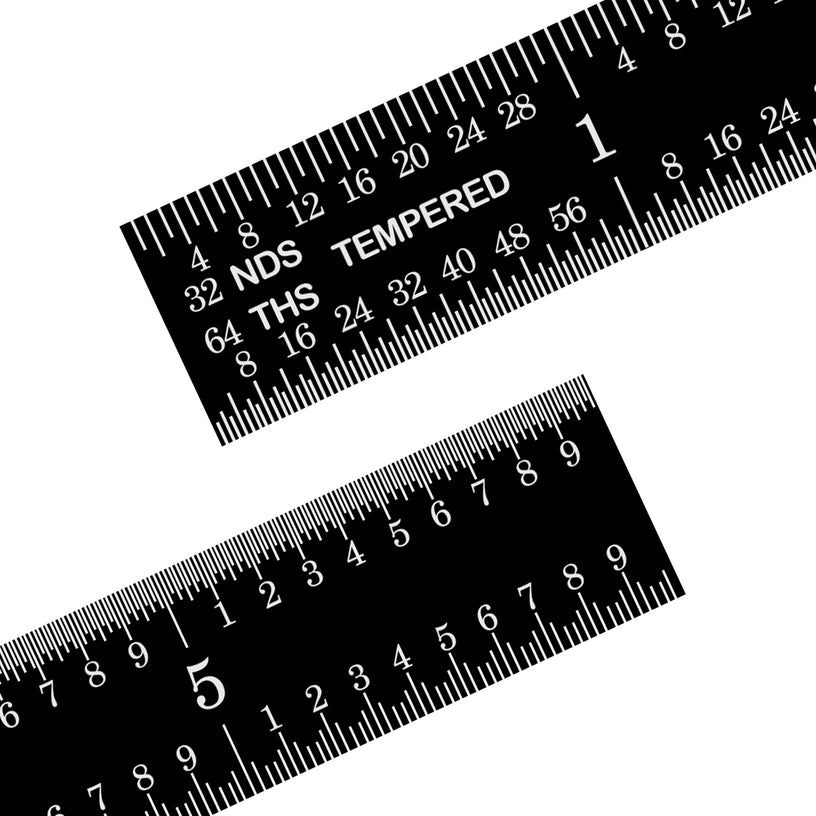

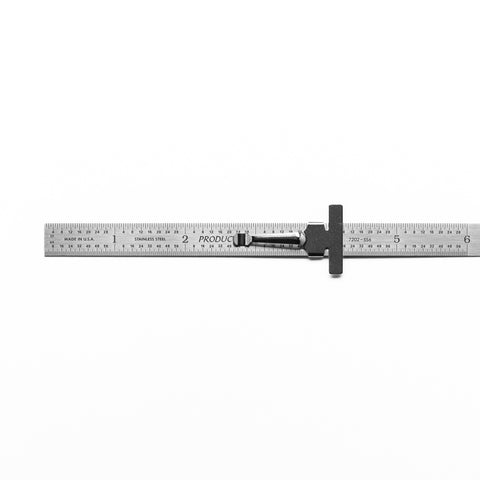

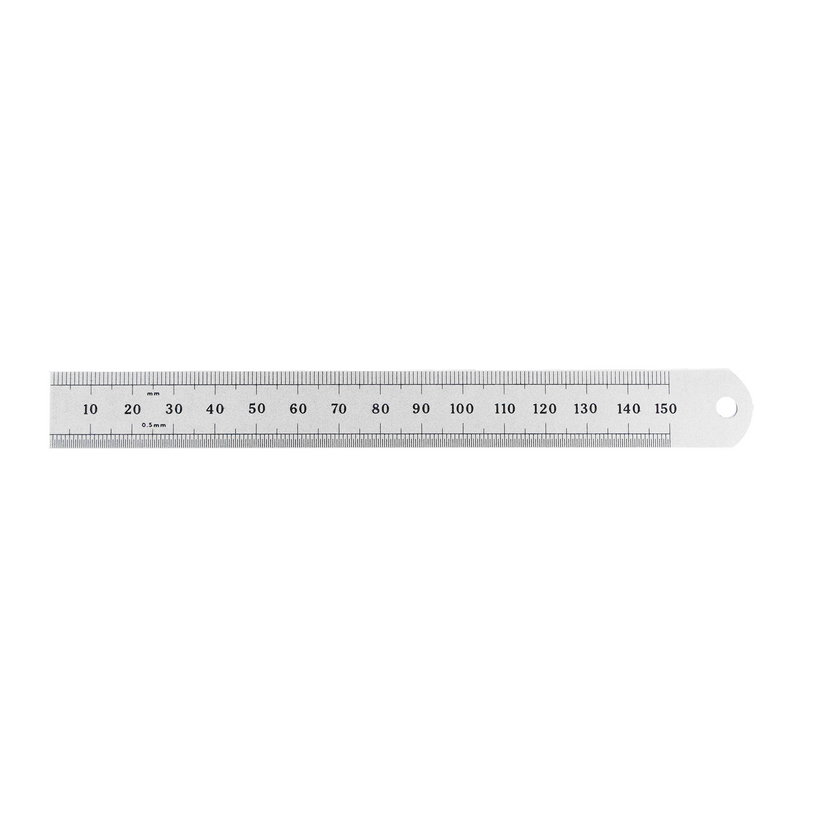

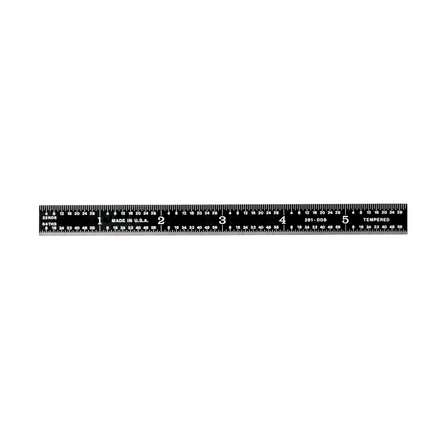

Precision is the backbone of any machine shop—whether you’re a seasoned professional or a dedicated hobbyist, the right machinist rule can make all the difference in your metrology results. In this guide, we’ll delve into the distinct features of 3R, 4R, 5R, 16R, and English/Metric machinist rules, explaining how each style helps you achieve accurate, reliable measurements. By the end, you’ll know exactly which graduation style best fits your precision measurement needs and where to find your best fit machinist tools at PEC Tools. 1. 3R Graduations Typical Increments: 1/8″ & 1/16″ on one side, 1/32″ & 1/64″ on the other. Primary Use: Ideal for basic fractional measurements. Who It’s For: Woodworkers, general hobbyists, and light-duty machine shop tasks where decimal increments aren’t needed. Key Advantages: Simpler fraction-based reading. Quick to use for layout and marking. 2. 4R Graduations Typical Increments: 1/8″ & 1/16″ on one side, 1/32″ & 1/64″ on the other. Primary Use: The most popular all-purpose machinist rule style. Who It’s For: Machinists and precision engineering professionals who need both quick checks (1/8″, 1/16″) and finer increments (1/32″, 1/64″). Key Advantages: Versatile for most industrial measurement tasks. Provides both coarse and fine fraction options. 3. 5R Graduations Typical Increments: 1/10″ & 1/50″ on one side, 1/20″ & 1/100″ on the other. Primary Use: Decimal-based measurements (e.g., 0.100″, 0.250″, etc.). Who It’s For: Ideal for engineering tools, especially when working off decimal blueprints or CAD drawings. Key Advantages: Streamlines workflow if your designs specify decimals. Essential for jobs involving precision instruments and tight tolerances. 4. 16R Graduations Typical Increments: 1/32″ & 1/64″ on one side, 1/10″ & 1/100″ on the other. Primary Use: A hybrid scale offering both fractional and decimal readings. Who It’s For: Professionals shifting between fraction-based and decimal-based specs in a single project. Key Advantages: Eliminates the need to switch between different rules. Saves time for machinists juggling multiple measurement standards. 5. English/Metric Scales Typical Increments: Inches (fractions or decimals) on one side, millimeters/centimeters on the other. Primary Use: For global or cross-border projects where metric measurements are common. Who It’s For: Engineers and machinists working with international clients or metric-centric designs. Key Advantages: Facilitates easy conversion between inches and millimeters. Useful for product designs distributed in both the U.S. and abroad. How to Choose the Right Increment Identify the Measurement Format in Your Project If your plans are strictly fractional, a 3R or 4R rule might suffice. If decimal dimensions dominate, look at 5R or 16R. For global or metric-based collaborations, opt for an English/Metric scale. Consider Project Complexity 4R offers the most common fractional increments for everyday machinist layout. 16R excels when you need a mix of decimals and fractions in one tool. Think About Long-Term Convenience If your workload changes often, the 16R or English/Metric scale provides versatile coverage. If you rarely handle metric conversions, a purely fractional or decimal scale might be enough. Quality and Durability Look for shop tools made from hardened steel with clear, long-lasting graduations. PEC Tools offers precision measurement instruments designed to withstand daily workshop use. Why Choose PEC Tools? At PEC Tools, we understand that high-quality machinist tools are essential for accurate and efficient work. We pride ourselves on offering: Superior Materials: Hardened, wear-resistant steel. Accurate Graduations: Laser-etched or precision-engraved markings that stand the test of time. Wide Range of Options: From 3R to 16R, including English/Metric scales, we have something for every machine shop requirement. Decades of Expertise: Trusted by professionals across precision engineering and industrial measurement sectors. o1
